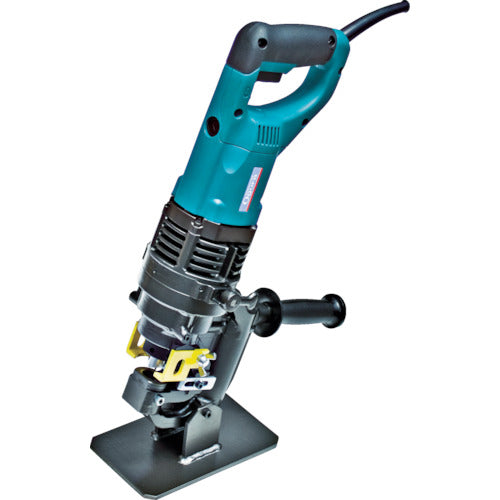

Ogura Electric Hydraulic Puncher (Double-acting) N Series HPC-N208W 1 unit

Catalog number: HPC-N208W Features: ●The punching capacity covers the frequently used processing sizes up to Φ20/t8 for mild steel (equivalent to SS400) and Φ20/t6 for stainless steel (SUS304), and is easy to handle with a lightweight (10.3 kg) body that has a double-acting mechanism. ●The double-acting system is hydraulically operated for both "punching" and "pulling out", eliminating the possibility of the material getting caught during pulling out, allowing you to work stress-free. ●The same blade can be used to process general steel, stainless steel, channel steel, aluminum, and copper. ●The protrusion in the center of the punch tip has been enlarged to make it easier to see and align. Applications: ●For drilling holes in steel. Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ20 (equivalent to SUS304) ● Maximum drilling capacity (mm) Iron: t8 x φ20 (equivalent to SS400) ● Pocket size (mm): 40 ● Power cord length (m): 5 ● Width (mm): 127 ● Depth (mm): 487 ● Height (mm): 315 ● Power supply: AC100V ● Double insulation ● Motor: 710W Set contents/accessories: ● Punch 12mm (main unit set) ● Die SB12mm (main unit set) ● Work stand ● Grip ● Strap ● Hexagonal wrench (3, 4, 5mm) ● Spanner (8 x 10mm) ● Nut tightening rod ● Case
