OH Super Strong Caster HX Series for Extra Heavy Loads Pluskite Caster Fixed Caster Wheel Diameter 150mm Allowable Load 1500kg HX34PK-150 1 pc

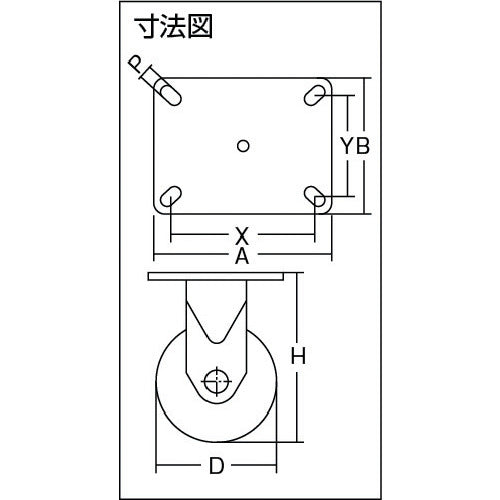

Catalogue number: HX34PK-150 Features: ●Wave-patterned fiber-reinforced phenolic resin wheels. ●The metal turning parts are resistant to high loads and impacts, and turn smoothly for a long time. Applications: ●Machine factories, food factories, warehouses, machine tools, computer office equipment, medical equipment, etc. Specifications: ●Wheel diameter D (mm): 152 ●Type: Fixed type ●Allowable load (daN): 1470 ●Allowable load (kgf): 1500 ●Wheel width (mm): 76 ●Mounting height H (mm): 203 ●Mounting seat A (mm): 184 ●Mounting seat B (mm): 133 ●Mounting pitch X (mm): 134-155 ●Mounting pitch Y (mm): 86-105 ●Mounting hole diameter P (mm): 14 ●Plate type ●Fixed type Material/Finish: ●Metal fittings: Steel ●Wheels: Phenolic resin
