OH Press Caster J Type Medium Load Rubber Wheel Swivel (with Bearing) Wheel Diameter 100mm OHJ-100 1 pc

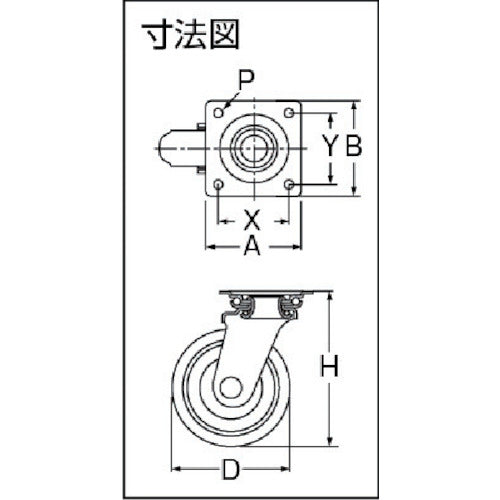

Catalogue number: OHJ-100 Features: ●Standard caster most commonly used for medium loads. Applications: ●For transporting luggage. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel ●Allowable load (daN): 98 ●Allowable load (kgf): 100 ●Wheel width (mm): 35 ●Mounting height H (mm): 144 ●Mounting seat A (mm): 95 ●Mounting seat B (mm): 95 ●Mounting pitch X (mm): 68-73 ●Mounting pitch Y (mm): 68-73 ●Mounting hole diameter P (mm): 10.5 ●Allowable load (N): 1000 ●Plate type ●Bearing included ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Nickel plated finish ●Wheels: Steel wheels, rubber
