OH Press Caster J Type Medium Load Swivel (with Bearing) Urethane Wheel Wheel Diameter 75mm OHUJ-75 1 pc

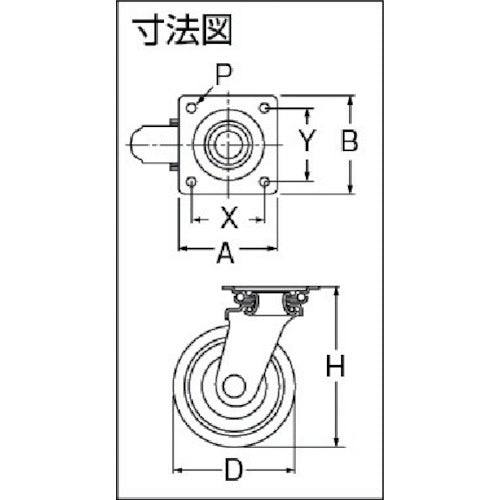

Catalogue number: OHUJ-75 Features: ●Excellent wear resistance and oil resistance. ●The hollow rotating part increases the support area, reducing wear and damage caused by loosening and rattling, and can withstand strong impacts, allowing for smooth use over long periods of time. Specifications: ●Wheel diameter D (mm): 75 ●Type: Free-moving ●Allowable load (daN): 117 ●Allowable load (kgf): 120 ●Wheel width (mm): 32 ●Mounting height H (mm): 101 ●Mounting seat A (mm): 82 ●Mounting seat B (mm): 82 ●Mounting pitch X (mm): 60.0-66 ●Mounting pitch Y (mm): 60.0-66 ●Mounting hole diameter P (mm): 9.5 ●Allowable load (N): 1200 ●Plate type ●Bearing included ●Free-moving Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Nickel-plated finish ●Wheels: Steel wheels, urethane
