OH Press Caster JB Type Medium Load Swivel (with Bearing) Urethane Wheel with Brake Wheel Diameter 100mm OHUJB-100 1 pc

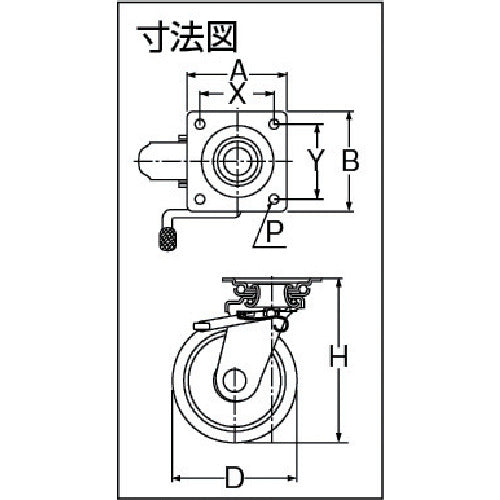

Catalog number: OHUJB-100 Features: ●Excellent resistance to wear and oil. ●A caster with a double stopper mechanism that simultaneously locks the rotation of the wheel and the swivel of the metal fitting. ●Lock and free can be easily performed with a single touch of the foot lever. ●The cart can be fixed when stopping in an inclined or vibrating place. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 176 ● Allowable load (kgf): 180 ● Wheel width (mm): 32 ● Mounting height H (mm): 144 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 95 ● Mounting pitch X (mm): 68.0-73 ● Mounting pitch Y (mm): 68.0-73 ● Mounting hole diameter P (mm): 10.5 ● Allowable load (N): 1800 ● Plate type ● With bearings ● Free-wheeling (with double stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Nickel-plated finish ● Wheels: Steel wheels, urethane
