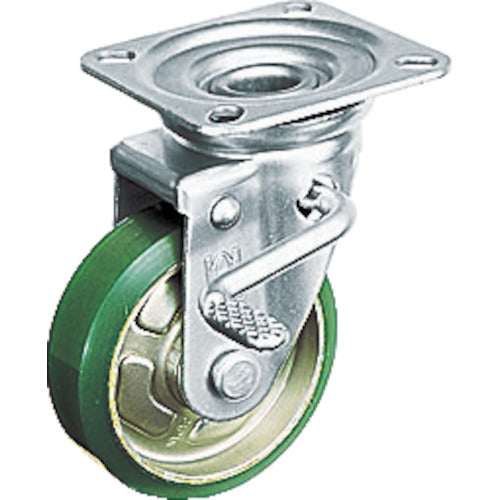

OH Press Caster JB Type Medium Load Swivel (with Bearing) Urethane Wheel with Brake Wheel Diameter 200mm OHUJB-200 1 pc

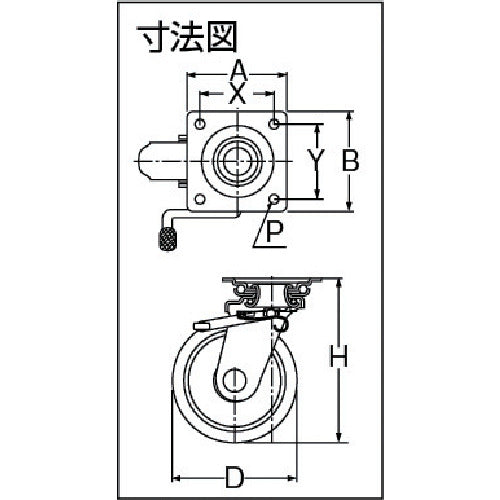

Catalog number: OHUJB-200 Features: ●Excellent wear resistance and oil resistance. ●A caster with a double stopper mechanism that simultaneously locks the rotation of the wheel and the swivel of the bracket. ●Lock and free can be easily performed with a single touch of the foot lever. ●The cart can be fixed when stopping in an inclined or vibrating place. Specifications: ● Wheel diameter D (mm): 200 ● Type: Free-wheeling (with stopper) ● Allowable load (daN): 392 ● Allowable load (kgf): 400 ● Wheel width (mm): 42 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 106-112 ● Mounting pitch Y (mm): 106-112 ● Mounting hole diameter P (mm): 11.5 ● Allowable load (N): 4000 ● Plate type ● Bearing included ● Free-wheeling (with double stopper) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Nickel-plated finish ● Wheels: Steel wheels, urethane
