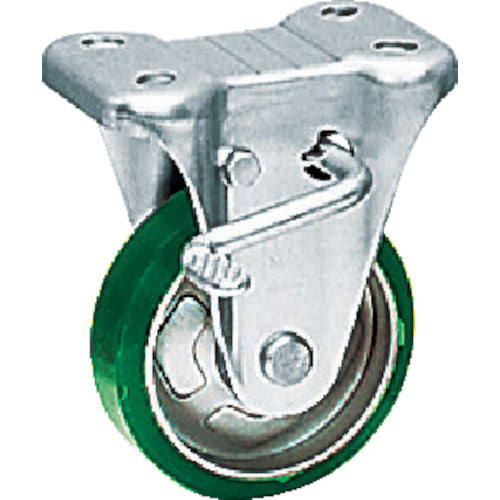

OH Press Caster KB Type Medium Load Fixed (with Bearing) with Brake Urethane Wheel Wheel Diameter 150mm OHUKB-150 1 pc

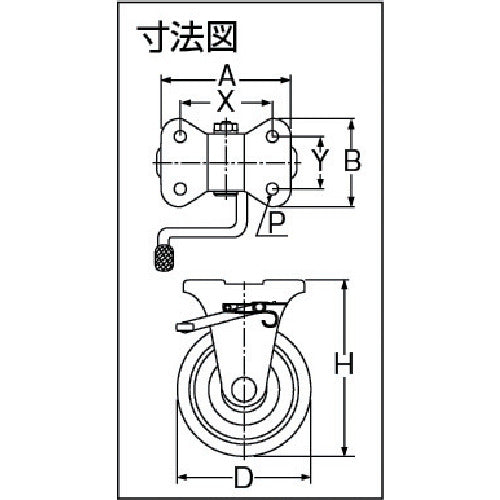

Catalogue number: OHUKB-150 Features: ●Excellent resistance to wear and oil. ●Equipped with brakes on the fixed cart. When used in conjunction with OHJB, all four wheels are locked, increasing the fixing force of the cart. ●Brakes can be easily locked and unlocked with a single touch of the foot lever. ●The cart can be fixed when stopping on an incline or in a place with vibration. Specifications: ● Wheel diameter D (mm): 150 ● Type: Fixed type (with stopper) ● Allowable load (daN): 294 ● Allowable load (kgf): 300 ● Wheel width (mm): 38 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 137 ● Mounting seat B (mm): 93 ● Mounting pitch X (mm): 94-102 ● Mounting pitch Y (mm): 53-57 ● Mounting hole diameter P (mm): 11.0 ● Allowable load (N): 3000 ● Plate type ● With bearings ● Fixed type (with stopper) Material / Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Nickel plated finish ● Wheels: Steel wheels, urethane
