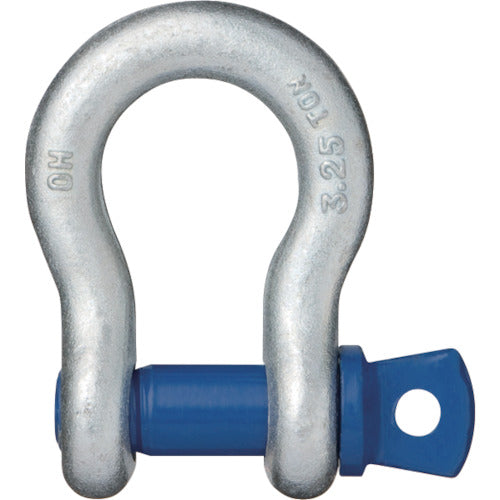

OH Forged Shackle Bow Type Load Capacity 2.0t BC-20T 1 pc

OH Forged Shackle Bow Type Load Capacity 2.0t BC-20T 1 pc

JAN：4963360523342 　
Cargo handling equipment Lifting clamps, slings, and load tie-downs OH Load Tie Down Machine Shackle
¥812
¥812
Sale Sold out
Shipping calculated at checkout.

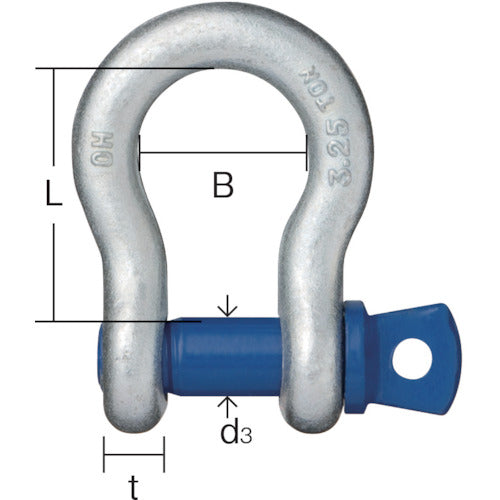

Catalogue number: BC-20T Features: ● Forged and strong. ● Can be used to connect belt slings, round slings, etc. Applications: ● For connecting belt slings, round slings, etc. Specifications: ● Basic load capacity (t): 2 ● Load capacity (kN): 19.6 ● Mouth width (mm): 20 ● Type: Round type ● Dimensions (mm) B: 32 ● Dimensions (mm) t: 13 ● Dimensions (mm) d3: 16 ● Dimensions (mm) D: 32 ● Dimensions (mm) L: 48 ● Installation: Bolt type ● Forged and heat treated Material/Finish: ● Body: S45C ● Bolt: SCr440
