(株)大阪ジャッキ製作所

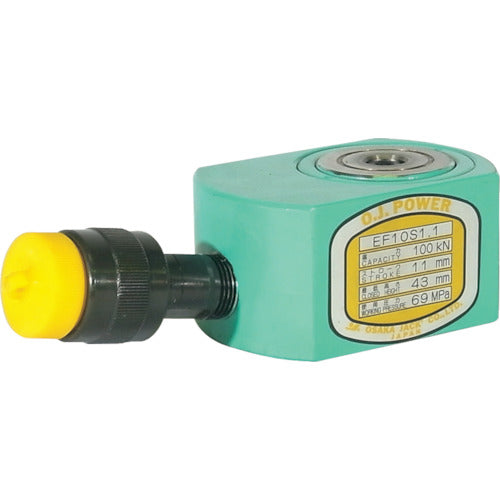

OJ Jack Flat Jack EF10S1.1 1 unit
OJ Jack Flat Jack EF10S1.1 1 unit
Regular price
¥30,769
Regular price
Sale price
¥30,769
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: EF10S1.1 Features: ● Flat jacks are used for lifting in extremely small gaps and for fine adjustment of machine installation. ● Use a hydraulic pump that meets the required oil volume of the jack. ● Single-acting with a built-in spring, reciprocating with one high-pressure hose. Specifications: ● Lifting force (kN): 100 ● Stroke (mm): 11 ● Minimum height (mm): 43 ● Pressure-receiving area (cm2): 14.52 ● Required oil volume (ml): 16 ● Rod diameter (mm): 38 ● Outer diameter (mm): 83 ● Spring return type ● Single-acting
