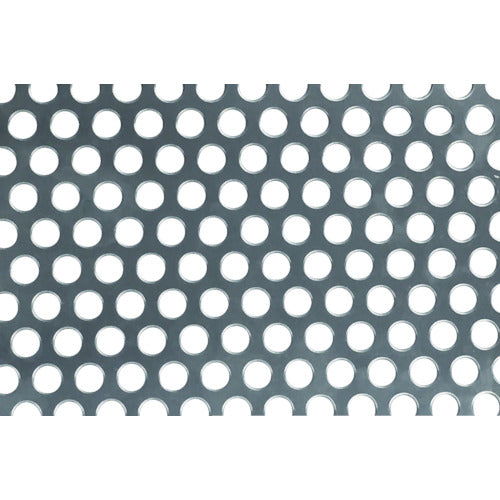

OKUTANI Aluminum punching metal 1.0T x D3 x P5 1000 x 1000 PM-AL-T1.0D3P5-1000X1000 1 sheet

Catalog number: PM-AL-T1.0D3P5-1000X1000 Features: ●Punched metal is the name given to a plate that has been processed by punching holes with a punching press die. ●The surface is flat, so it is highly resistant to wear and tear and the mesh will not collapse. ●*The presence or absence of a perimeter edge (non-perforated area) is not an issue. (Some parts are left uncut) ●Aluminum is lighter than iron and stainless steel, weighing approximately 1/3 of the weight. Applications: ●Ideal for machine and equipment covers, air filters, exhaust mufflers, insulation and heat retention panels, design materials for architecture and structures, partitions, and for sieving. Specifications: Thickness (mm): 1.0 Hole diameter (mm): 3 Pitch (mm): 5 Arrangement (mm): 60° staggered Width (mm): 1000 Length (mm): 1000 Surface finish: Raw material Material/Finish: Aluminum raw material (A1100) Note: The presence or absence of a perimeter edge (non-perforated area) is not important. (Partially cut off) (Partially cut off)
