OKUTANI Stainless Steel Punching Metal 3.0TXD3XP5 1000X10 PM-SUS-T3.0D3P5-1000X1000 1 sheet

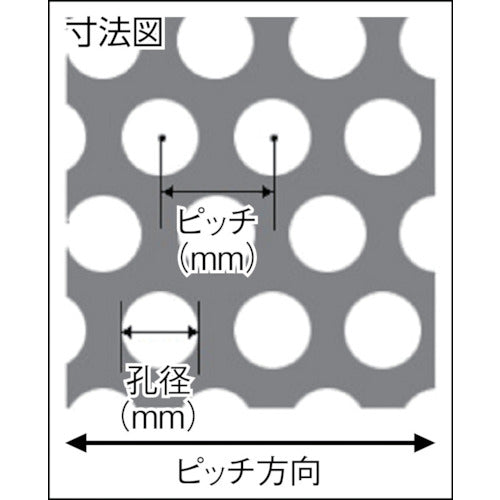

Catalog number: PM-SUS-T3.0D3P5-1000X1000 Features: ●Punched metal is the name of a plate that has been processed by punching holes with a punching press die. ●Since the surface is flat, it is highly durable against wear and tear and the mesh does not collapse. ●※The presence or absence of a perimeter edge (non-perforated part) is not an issue. (Partly cut) ●※Stainless steel is more resistant to corrosion and rust than iron. Applications: ●Machine and equipment covers, air filters, exhaust mufflers, insulation and heat retention panels, design materials for architectural and structural designs, partitions, etc. Specifications: ●Thickness (mm): 3 ●Hole diameter (mm): 3 ●Pitch (mm): 5 ●Arrangement (mm): 60° staggered ●Width (mm): 1000 ●Length (mm): 1000 ●Surface finish: 2B Material/Finish: ●Stainless steel (SUS304) Note: ●The presence or absence of a perimeter edge (non-perforated part) is not an issue. (Partially cut off)● (Partially cut off)
