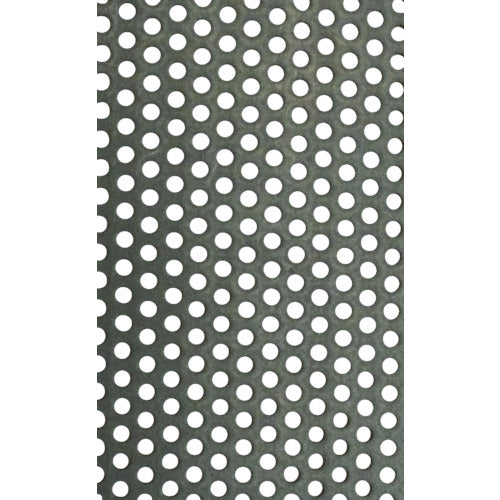

OKUTANI Iron punching metal 1.0TXD8XP12 914X914 PM-SPC-T1.0D8P12-914X914 1 sheet

Catalog number: PM-SPC-T1.0D8P12-914X914 Features: ●Punched metal is the name of a plate that has been processed by punching holes with a punching press die. ●Since the surface is flat, it is highly durable against wear and tear and the mesh does not collapse. ●※The presence or absence of a perimeter edge (non-perforated part) is not an issue. (Some parts are left cut) ●※In the case of iron, due to the characteristics of the material, rust may occur depending on the storage conditions and number of days. (No claims) Applications: ●It is ideal for machine and equipment covers, air filters, exhaust mufflers, insulation and heat retention panels, design materials for architecture and structures, partitions, and for sieving. Specifications: ●Thickness (mm): 1 ●Hole diameter (mm): 8 ●Pitch (mm): 12 ●Arrangement (mm): 60° staggered ●Width (mm): 914 ●Length (mm): 914 ●Surface finish: Raw material Material/Finish: ●Iron (SPCC-SD: Plate thickness 1.0mm, SPHC-P: Plate thickness 1.6, 2.3, 3.2mm) Note: ●The presence or absence of a perimeter edge (non-hole area) is not important. (Partially cut out) ●(Partially cut out)
