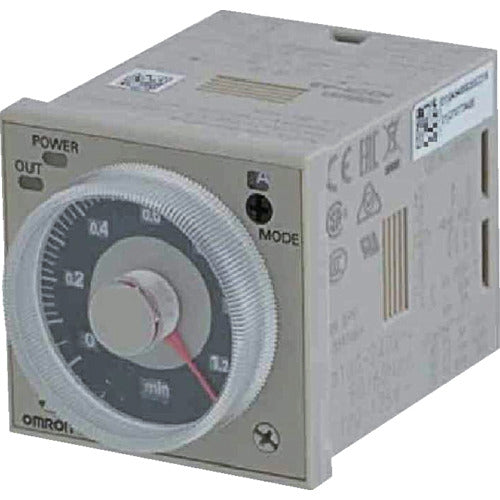

OMRON Timer H3CR-G8L AC200-240 1 piece

Catalog number: H3CR-G8L AC200-240 Features: ●H3CR-G star-delta timer. ●One unit can select from four time ranges between 0.5 seconds and 120 seconds. ●UL, CSA, NK, LR certified, EN61812-1 compliant. CE mark, CCC compliant *H3CR-G8L-30/-G8EL-31 models have not acquired safety standards Specifications: ●Width (mm): 48 ●Height (mm): 48 ●Protection class: IP40 (panel surface) ●Depth (mm): 81.6 ●Rated power supply voltage: AC200/220/240V 50/60 Hz ●External connection method: 8-pin socket ●Control output (type): Time-limited relay 1a (star circuit) 1a (delta circuit) ●Setting time range: 0.5 to 6s (4 ranges) ●Operation/reset method: Time-limited operation/self-reset ●Operation mode: Star-delta
