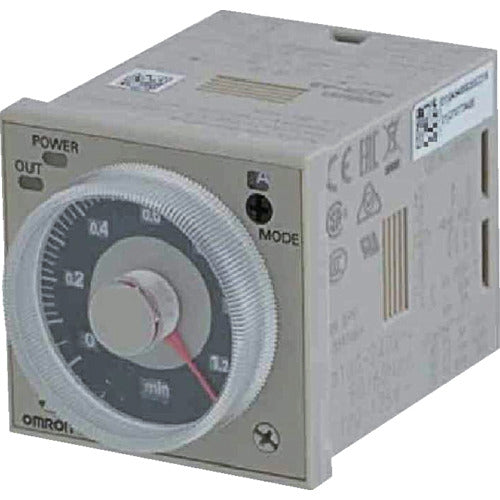

OMRON Timer H3CR-H8L AC200-240 S 1 piece

Catalog number: H3CR-H8L AC200-240 S Features: ●H3CR-H power off delay timer. ●4 time ranges can be selected from 0.05 seconds to 12 seconds for the S series and 0.05 minutes to 12 minutes for the M series. ●UL, CSA, NK, LR certified, EN61812-1 compliant. CE mark and CCC compliant. Specifications: ●Width (mm): 48 ●Height (mm): 48 ●Protection class: IP40 (panel surface) ●Depth (mm): 81.6 ●Rated power supply voltage: AC200/220/240V 50/60HZ ●External connection method: 8-pin socket ●Control output (type): Time-limited relay 2c ●Setting time range: 0.05 to 0.6s (4 ranges) ●Operation/reset method: Instantaneous operation/time-limited reset ●Operation mode: Power off delay
