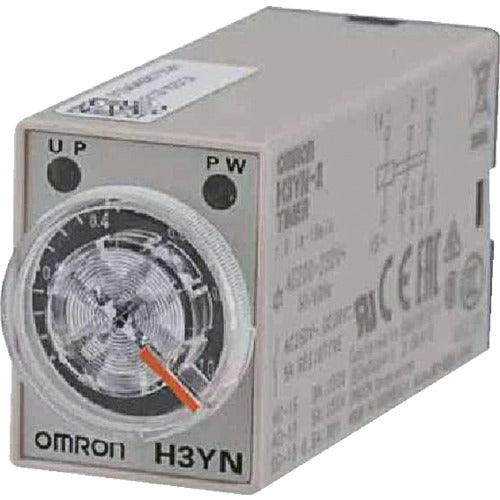

OMRON Timer H3YN-2 AC100-120 1 piece

Catalog number: H3YN-2 AC100-120 Features: ●Multiple time ranges and operation modes have been achieved. ●Semi-multiple power supply voltages have also been achieved. ●Pin compatible with MY power relays. ●Small size contributes to space saving. ●UL.CSA standard acquired, EN61812-1 compliant, CE mark compatible. Specifications: ●Width (mm): 21.5 ●Depth (mm): 63 ●Height (mm): 28 ●Rated power supply voltage (V): AC100-120 ●Protection structure: IP40 ●Control output (type): Time-delay relay 2c ●Operation mode: 4 mode switching: on-delay, interval, flicker off start, flicker on start ●Setting time range: 0.1s to 10min (4 ranges) ●External connection method 8-pin socket ●Case color: Beige
