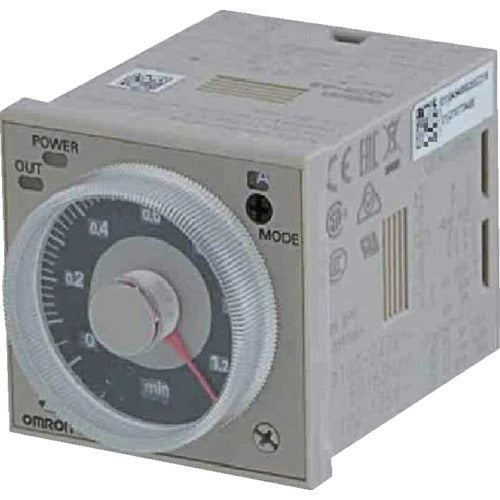

OMRON Timer H3CR-A8E AC100-240/DC100-125 1 piece

Catalog number: H3CR-A8E AC100-240/DC100-125 Features: ●8 operation modes (11-pin type) and 5 operation modes (8-pin type) are available for various applications. ●Eco-friendly design with low current consumption. ●0-setting instantaneous output makes sequence checks easy. ●Socket (P3G-08) can be attached to shorten the neck length to 75 mm (H3CR-A8E AC100-240V/DC100-125V). ●PNP input type is also available. ●UL, CSA, NK, LR, CCC certified, EN61812-1 compliant, CE mark compatible. Specifications: ●Width (mm): 48 ●Depth (mm): 81.6 ●Height (mm): 48 ●Type: NPN input/relay 2C output ●Protection rating: Panel surface: IP40 Terminal: IP00 ●Pin type: 8 ●Rated power supply voltage (V): AC100-240/DC100-125 ●External connection method: 8-pin socket ●Control output (type): Time-limited relay 1c, instantaneous relay 1c ●Setting time range: 0.05 to 1.2s (18 ranges) ●Protection structure (panel): IP40 ●Operation/reset method: Time-limited operation/self-reset ●Operation mode: On-delay, flicker off start, flicker on start, interval, one-shot output
