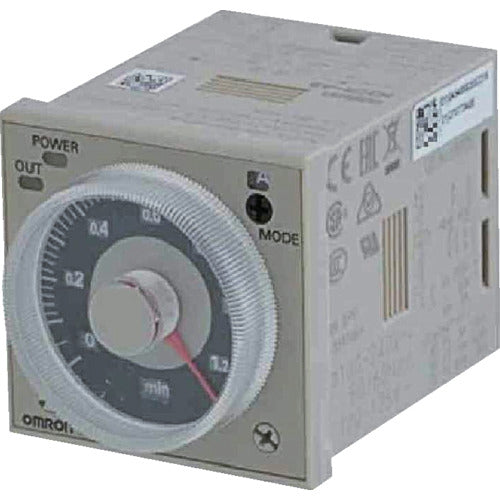

OMRON Timer H3CR-F8 AC100-240/DC100-125 1 piece

Catalog number: H3CR-F8 AC100-240/DC100-125 Features: ●H3CR-F Twin Timer. ●The time units can be set individually for on and off times, allowing for a combination of long-term on or off and short-term off or on. ●Two operation modes are available: flicker on start and flicker off start. ●Low-voltage free (AC24-48/DC12-48V) and high-voltage free (AC100-240V/DC100-125V) power supplies. ●24 time ranges can be selected between 0.05 seconds and 300 hours. ●Instant output at 0 setting is possible. By turning the scale all the way to 0, instant output is generated, making it easy to check sequence operation. ●UL, CSA, NK, LR, CCC certified, EN61812-1 compliant. CE mark compatible. Specifications: ●Width (mm): 48 ●Height (mm): 48 ●Protection class: IP40 (panel surface) ●Depth (mm): 81.6 ●Rated power supply voltage: AC100-240V 50/60Hz/DC100-125V ●External connection method: 8-pin socket ●Control output (type): Time-limited relay 2c ●Setting time range: 0.05-1.2s (18 ranges) ●Operation/recovery method: Time-limited operation/time-limited recovery/self-recovery ●Operation mode: Flicker off start
