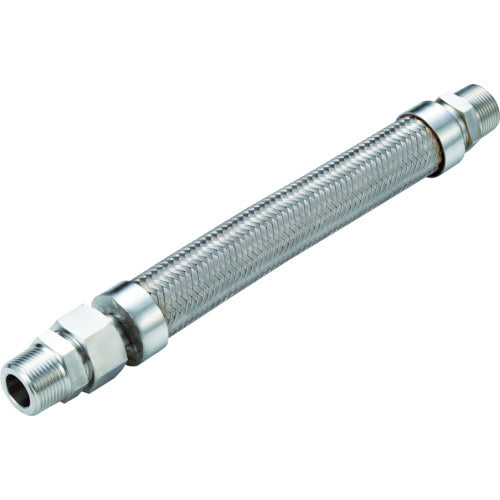

ORK Super Free Flex 25A 300L SFB-0107-25A-300L 1 piece

Catalog number: SFB-0107-25A-300L Features: ● A metal flex that is softer than conventional products. ● Excellent resistance to repeated bending and vibration absorption. ● The joint is packing-less, so there is no need to replace the packing. Applications: ● For connecting various pipes, preventing misalignment and absorbing vibration. Specifications: ● Nominal diameter A: 25 ● Nominal diameter B: 1 ● Total length (mm): 300 ● Compatible fluids: cold and hot water, oil, air, gas, etc. (limited to non-corrosive fluids) ● For general piping ● Maximum operating pressure: 1MPa ● Operating temperature range: -196 to 100°C ● Connection: Tapered male thread (R) Material/Finish: ● Flex part: Stainless steel (SUS304) ● Nipple part: Stainless steel (SUS304) Caution: ● When absorbing vibration, connect as straight as possible.
