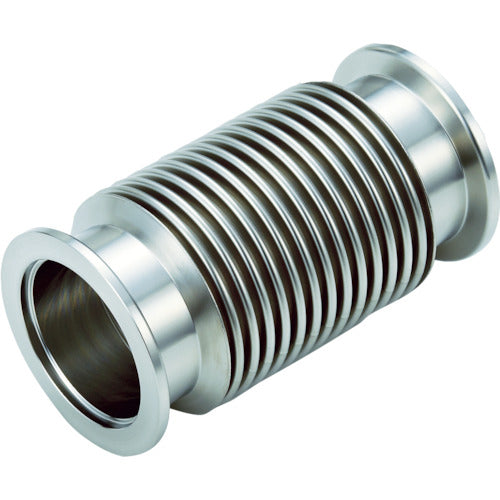

ORK Flexible Tube Vacuum Bellows (NW Flange Type) NW40 Length 100mm ORV-40CB-10 1 Piece

Catalog number: ORV-40CB-10 Features: ● Stainless steel vacuum specification bellows. ● Highly flexible and can absorb piping expansion and contraction and misalignment. Applications: ● For vacuum piping. Specifications: ● Total length (mm): 100 ● Flange size: NW40 ● Compatible fluids: Various gases, air (vacuum exhaust) ● Maximum operating pressure: FV to atmospheric pressure ● Operating temperature range: -196 to 150°C (varies depending on heat resistance temperature of sealing material) ● He leak test: 1.33 x 10 [-10th power] Pa・[M3] /sec or less Material / Finish: ● Flexible part: Stainless steel (SUS316L) ● Flange part: Stainless steel (SUS316L)
