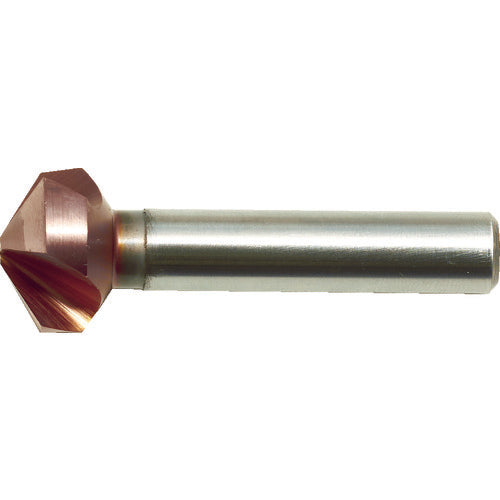

OSG Countersink V-UCS 10.4X120°X48 9112104 V-UCS-10.4X120X48 1 piece

Catalog number: V-UCS-10.4X120X48 Features: ●High-speed cutting is possible, and a wide range of processing such as countersinking, deburring, and chamfering can be performed, resulting in beautiful finished surfaces. ●High-speed steel series and carbide series are available. ●Composite multi-layer coating (V coating) is used to obtain higher hardness, which is effective for increasing speed and extending life. Applications: ●Cutting materials: carbon steel, alloy steel, pre-hardened steel, tool steel, hardened steel, stainless steel, cast iron, ductile cast iron, copper alloy, aluminum alloy. Specifications: ●Effective blade diameter (mm): 10.4 ●Tip diameter (mm): 2.2 ●Total length (mm): 48 ●Shank diameter (mm): 6 ●Tip angle (°): 120 ●Number of blades (pieces): 3 ●Surface treatment: V coating ●Number of blades: 3 ●3-blade Material/Finish: ●High-speed steel (HSS)
