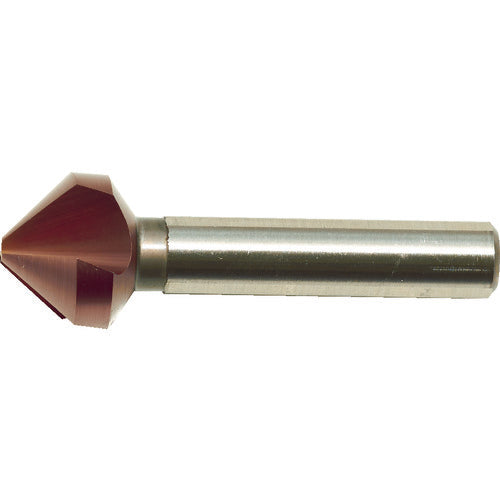

OSG Countersink V-UCS 20.5X90°X63 9109205 V-UCS-20.5X90X63 1 piece

Catalog number: V-UCS-20.5X90X63 Features: ●High-speed cutting is possible, and a wide range of processing such as countersinking, deburring, and chamfering can be performed, resulting in beautiful finished surfaces. ●High-speed steel series and carbide series are available. ●Composite multi-layer coating (V coating) is used to obtain higher hardness, which is effective for increasing speed and extending life. Applications: ●Cutting materials: carbon steel, alloy steel, pre-hardened steel, tool steel, hardened steel, stainless steel, cast iron, ductile cast iron, copper alloy, aluminum alloy. Specifications: ●Effective blade diameter (mm): 20.5 ●Tip diameter (mm): 3 ●Total length (mm): 63 ●Shank diameter (mm): 10 ●Tip angle (°): 90 ●Number of blades (pieces): 3 ●Surface treatment: V coating ●Number of blades: 3 ●3-blade Material/Finish: ●High-speed steel (HSS)
