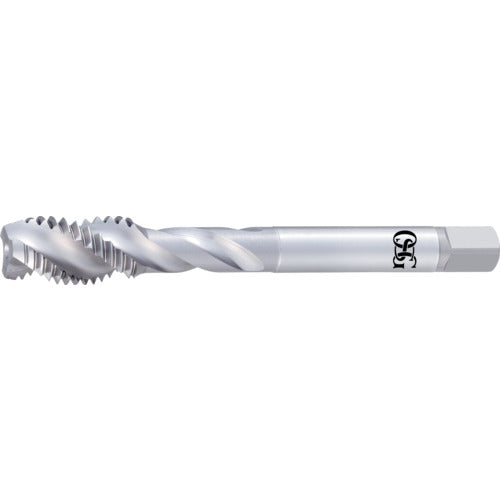

OSG Spiral Tap General Purpose M10X1.25 STD 11624 EX-SFT-STD-M10X1.25 1 piece

Catalog number: EX-SFT-STD-M10X1.25 Features: ●Used for blind holes, suitable for cutting materials with continuous coil-shaped chips for carbon steel, alloy steel, and non-ferrous metals. Applications: ●For blind hole machining. ●Cutting materials: alloy steel, medium carbon steel, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, thermoplastic plastics. Specifications: ● Precision: OH3 ● Precision notation: STD ● Nominal size: M10 ● Pitch (mm): 1.25 ● Thread length (mm): 18 ● Total length (mm): 75 ● Shank diameter (mm): 7 ● Shank square section (mm): 5.5 ● Counterbore diameter (mm): 8.75 ● Number of teeth: 2.5 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Tap grade: OH grade Material/Finish: ● High-speed steel (HSS-E)
