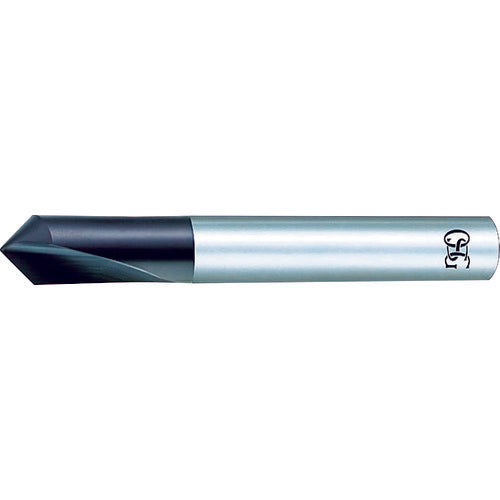

OSG Center Drill, Carbide FX Coating, Shank Diameter 16mm, Center Hole Angle (°): 90, 8561516, FX-LDS-16X90, 1 piece

Catalog number: FX-LDS-16X90 Features: ● Not only chamfering, but also centering allows for high speed and long life. Applications: ● Workpiece: Carbon steel, alloy steel, tempered steel, hardened steel (45-70HRC), tool steel, cast iron, copper alloy, ductile cast iron, aluminum alloy casting, titanium alloy, Inconel. ● Low, medium, and high carbon steel, alloy steel, tempered steel (up to 45HRC), hardened steel (45-70HRC), tool steel, cast iron. ● Chamfering. ● Positioning. Specifications: ● Taper diameter (mm): 16 ● Shank diameter (mm): 16 ● Total length (mm): 118 ● Center hole angle (°): 90 ● Minimum chamfering diameter (mm): 5 ● Surface treatment: FX coating ● Blade shape: Single-edged ● FX coating ● Twist angle 12° Material/Finish: ● Carbide
