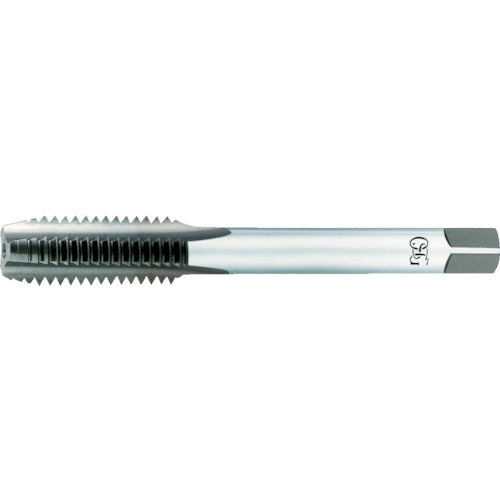

OSG Tap 22831 OTT-1.5P-STD-M8X1 1 piece

Catalog number: OTT-1.5P-STD-M8X1 Features: ●Due to the durability of the cutting edge and the separation of cutting chips, it is ideal for large-scale threading. ●Can be used for both through holes and blind holes. ●Ideal for large-scale threading of ordinary cast iron, tough cast iron, thermosetting resin, brass castings, etc. using high-precision automatic machines. Applications: ●Workpiece: Cast iron, bronze, thermosetting plastic, ductile cast iron, brass, brass castings, aluminum alloy castings, magnesium alloy castings, zinc alloy castings Specifications: ●Tip: Top ●Accuracy: OH3 ●Accuracy notation: STD ●Nominal size: M8 ●Pitch (mm): 1 ●Thread length (mm): 22 ●Total length (mm): 70 ●Shank diameter (mm): 6.2 ●Shank square section (mm): 5 ●Pilot hole diameter (mm): 7 ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Tap grade: OH grade Material/Finish: ●Carbide
