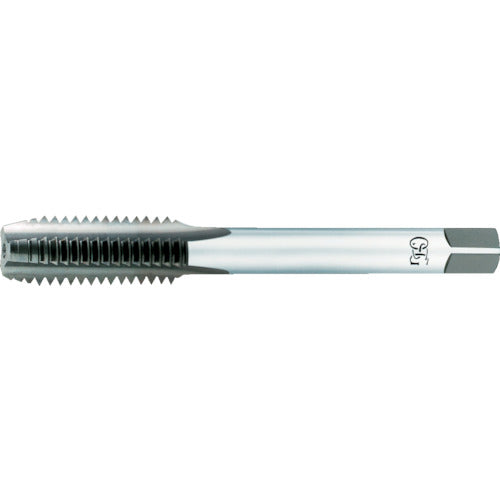

OSG Tap 24017 OTT-3P-STD-M5X0.8 1 piece

Catalog number: OTT-3P-STD-M5X0.8 Features: ●Due to the durability of the cutting edge and the breaking of cutting chips, it is ideal for mass threading. ●Can be used for both through holes and blind holes. ●Ideal for mass threading of ordinary cast iron, tough cast iron, thermosetting resin, brass castings, etc. using high-precision automatic machines. Applications: ●Cutting materials: cast iron, bronze, thermosetting plastic, ductile cast iron, brass, brass castings, aluminum alloy castings, magnesium alloy castings, zinc alloy castings Specifications: ●Tip: medium ●Precision: OH3 ●Precision notation: STD ●Nominal dimensions: M5 ●Pitch (mm): 0.8 ●Thread length (mm): 16 ●Total length (mm): 60 ●Shank diameter (mm): 5.5 ●Shank square section (mm): 4.5 ●Drill hole diameter (mm): 4.2 ●Machined thread: metric thread ●Surface treatment: non-coated ●Tap grade: OH grade Material/Finish: ●Carbide
