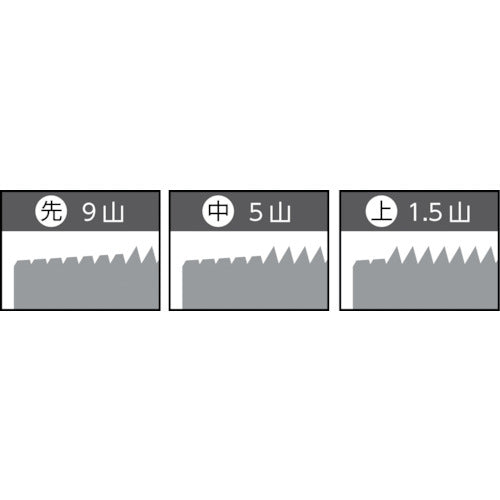

Catalog number: HT1-S-M1X0.25 Features: ● A general tap that is used in a wide range of applications. ● Can be used for both through holes and blind holes. Applications: ● Workpiece: Medium carbon steel, aluminum alloy, etc. Specifications: ● Tip: Tip ● Precision: JIS Class 3 ● Nominal dimensions: M1 ● Pitch (mm): 0.25 ● Thread length (mm): 8 ● Total length (mm): 30 ● Shank diameter (mm): 3 ● Shank square section (mm): 2.5 ● Pilot hole diameter (mm): 0.75 ● Machined thread: Metric thread ● Surface treatment: Non-coated Material/Finish: ● Alloy tool steel (SKS)
