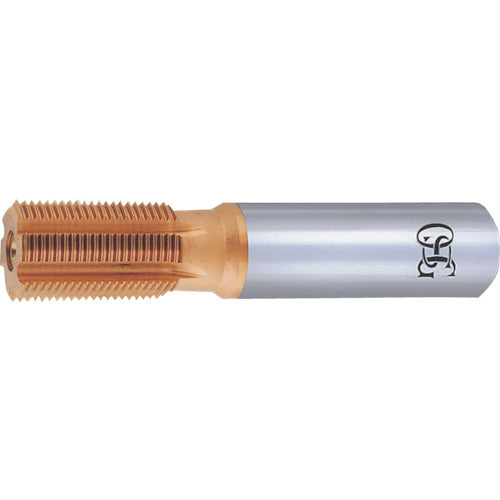

OSG Tap 8306036 PNGT-16X40XP3-INT 1 piece

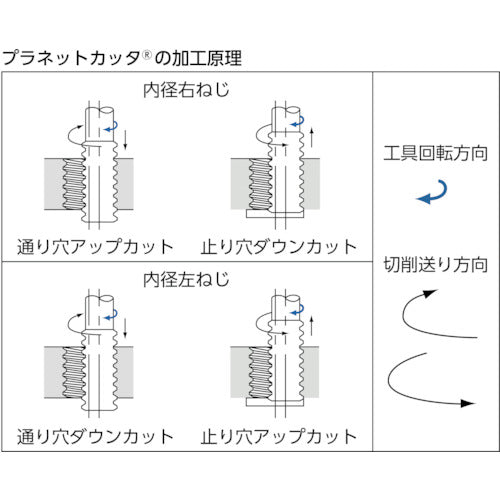

Catalog number: PNGT-16X40XP3-INT Features: ●One tool can process threads with different nominal dimensions if they have the same pitch, and can process both right-handed and left-handed threads. Applications: ●Cutting materials: low, medium, and high carbon steel, alloy steel, stainless steel, cast steel, cast iron, ductile cast iron, thermosetting plastics, thermoplastic plastics, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, and zinc alloy castings. Specifications: ●Nominal size: M20 ●Pitch (mm): 3 ●Blade diameter (mm): 16 ●Blade length (mm): 40 ●Total length (mm): 125 ●Number of blades (pieces): 4 ●Shank diameter (mm): 16 ●Neck length (mm): 50 ●Surface treatment: TiN coating ●Total length L: 125 ●Blade length l: 40 ●Shank diameter d: 16 Material/Finish: ●High-speed steel (HSS-Co)
