OSG Tap 8317526 VP-NRT-P-STD-M4X0.7 1 piece

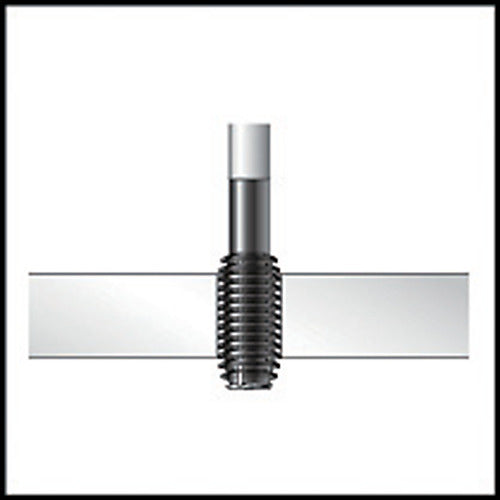

Catalog number: VP-NRT-P-STD-M4X0.7 Features: ● Suitable for steel and non-ferrous alloys. High performance for water-soluble highly diluted tapping. ● High efficiency and long life machining is possible. Applications: ● For through hole machining. ● Workpiece: low, medium and high carbon steel, stainless steel, copper, brass, brass castings, rolled aluminum, aluminum alloy castings, zinc alloy castings, alloy steel. Specifications: ● Precision: RH6 ● Precision notation: STD ● Nominal size: M4 ● Pitch (mm): 0.7 ● Thread length (mm): 10 ● Total length (mm): 52 ● Shank diameter (mm): 5 ● Shank square section (mm): 4 ● Number of teeth: 4 teeth ● Machined thread: Metric thread ● Surface treatment: V coating (composite multi-layer coating) ● Tap grade: RH grade Material / Finish: ● Powder high speed steel (CPM) Caution: ● Pilot hole machining has a large effect on the accuracy of the screw. ● Be careful when drilling pilot holes.
