OSG High-coating Drill Nexus Drill Stub Type Cutting Diameter 9.24mm 8650924 NEXUS-GDS-9.24 1 piece

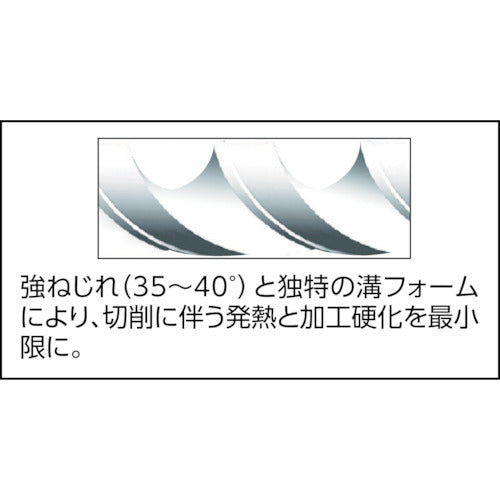

Catalog number: NEXUS-GDS-9.24 Features: ●This drill is for shallow hole machining, with a shorter overall length than regular drills and increased rigidity. ●WD1 coating suppresses peripheral margin wear and achieves a long life at high speeds. ●Strong twist (35-40°) and unique groove form minimize heat generation and work hardening associated with cutting. ●High-toughness high-speed steel is used as the base material to suppress chipping of the cutting edge, which is particularly likely to occur when machining stainless steel. Applications: ●Cutting materials: Stainless steel, low and medium carbon steel, copper alloy, aluminum drawn material, aluminum alloy casting, magnesium alloy. ●Cutting materials: Stainless steel, mild steel, copper, aluminum alloy. Specifications: ● Blade diameter (mm): 9.24 ● Groove length (mm): 40 ● Total length (mm): 90 ● Shank diameter (mm): 10 ● Effective machining depth: 2D to 3D (blade diameter x 2 to 3 times) ● Surface treatment: WD1 coating ● WDI coating Material/Finish: ● High speed steel (HSSE)
