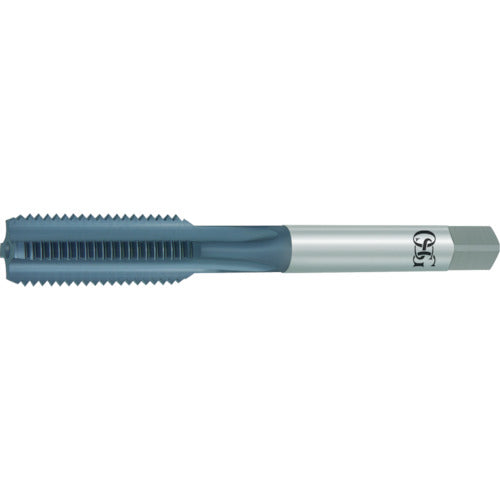

OSG Hand Tap for Die Casting Zero Tap (for Metric Threads) M10 Pitch 1.25mm 8312559 VP-DC-HT-STD-M10 X 1.25 1 Piece

Catalog number: VP-DC-HT-STD-M10 x 1.25 Features: ●The rake angle of 0° and the strength of the cutting edge are large, and by using a machine with a fully synchronized feed mechanism, it is highly effective in machining aluminum alloy castings and other materials. Applications: ●Workpiece: Aluminum alloy castings, magnesium alloy castings, zinc alloy castings, cast iron, ductile cast iron. ●For blind hole machining Specifications: ●Tip: Top ●Accuracy: OH4 ●Accuracy notation: STD ●Nominal size: M10 ●Pitch (mm): 1.25 ●Thread length (mm): 24 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 8.75 ●Machining thread: Metric thread ●Surface treatment: V coating Material/Finish: ●Powdered high speed steel (CPM)
