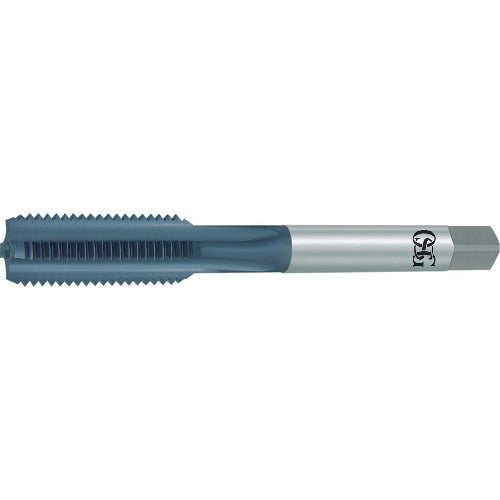

OSG Hand Tap for Die Casting Zero Tap (for Metric Threads) M6 Pitch 1mm 8312531 VP-DC-HT-STD-M6 x 1 1 piece

Catalog number: VP-DC-HT-STD-M6 X 1 Features: ● With a 0° rake angle and large cutting edge strength, it is highly effective in machining aluminum alloy castings and other materials by using a machine with a fully synchronized feed mechanism. Applications: ● Workpiece: Aluminum alloy castings, magnesium alloy castings, zinc alloy castings, cast iron, ductile cast iron. ● For blind hole machining Specifications: ● Tip: Top ● Precision: OH3 ● Precision notation: STD ● Nominal dimensions: M6 ● Pitch (mm): 1 ● Thread length (mm): 19 ● Total length (mm): 62 ● Shank diameter (mm): 6 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 5 ● Machining thread: Metric thread ● Surface treatment: V coating Material/Finish: ● Powdered high speed steel (CPM)
