OSG Hand Tap (High Speed ​​Steel) M3X0.5 #2 392 HT2-H-M3X0.5 1 piece

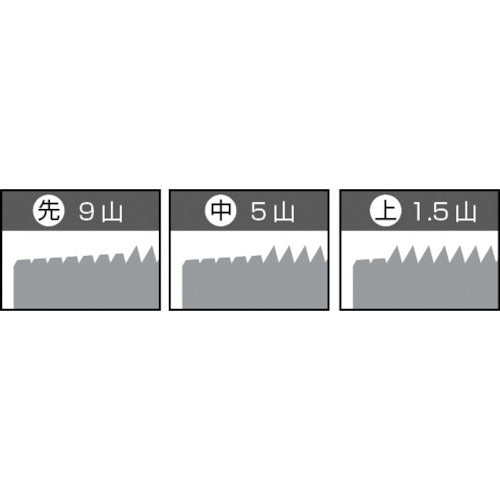

Catalog number: HT2-H-M3X0.5 Features: ● A general tap that is used in a wide range of applications. ● Can be used for both through holes and blind holes. Applications: ● Workpiece: Medium carbon steel, aluminum alloy, etc. Specifications: ● Tip: Medium ● Precision: OH1 ● Precision notation: STD ● Nominal dimensions: M3 ● Pitch (mm): 0.5 ● Thread length (mm): 11 ● Overall length (mm): 46 ● Shank diameter (mm): 4 ● Shank square section (mm): 3.2 ● Pilot hole diameter (mm): 2.5 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Tap grade: OH grade Material/Finish: ● High speed steel (HSS)
