OSG Hand Tap (High Speed ​​Steel) M5X0.8 #2 512 HT2-H-M5X0.8 1 piece

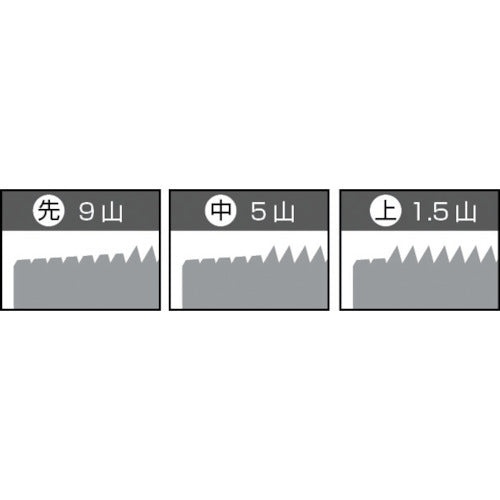

Catalog number: HT2-H-M5X0.8 Features: ● A general tap that is used in a wide range of applications. ● Can be used for both through holes and blind holes. Applications: ● Workpiece: Medium carbon steel, aluminum alloy, etc. Specifications: ● Tip: Medium ● Precision: OH2 ● Precision notation: STD ● Nominal dimensions: M5 ● Pitch (mm): 0.8 ● Thread length (mm): 16 ● Total length (mm): 60 ● Shank diameter (mm): 5.5 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 4.2 ● Machined thread: Metric thread ● Surface treatment: Non-coated ● Tap grade: OH grade Material/Finish: ● High-speed steel (HSS)
