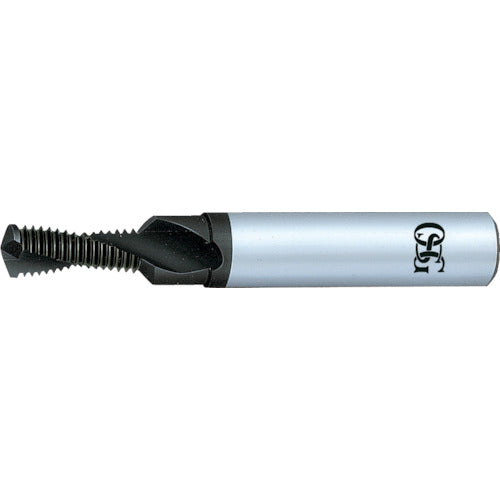

OSG Machining Center Threading Tool Super Planet Cutter M10 Pitch 1.25mm 8330425 DR-PNAC-M10 X 1.25 - 2D 1 piece

Catalog number: DR-PNAC-M10 X 1.25 - 2D Features: ●A composite tool that can perform pilot hole processing + chamfering + female thread processing with one tool, which eliminates the need for tool replacement, reduces non-machining time, and improves productivity. Applications: ●Cutting materials: Cast iron, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, ductile cast iron, brass, brass castings. Specifications: ●Nominal size: M10 ●Pitch (mm): 1.25 ●Blade diameter (mm): 8.5 ●Blade length (mm): 20.1 ●Total length (mm): 79 ●Number of blades (pieces): 2 ●Shank diameter (mm): 12 ●Surface treatment: FX coating ●Total length L: 79 ●Blade length l: 24 ●Shank diameter d: 12 ●Machining thread: Metric thread Material/Finish: ●Carbide
