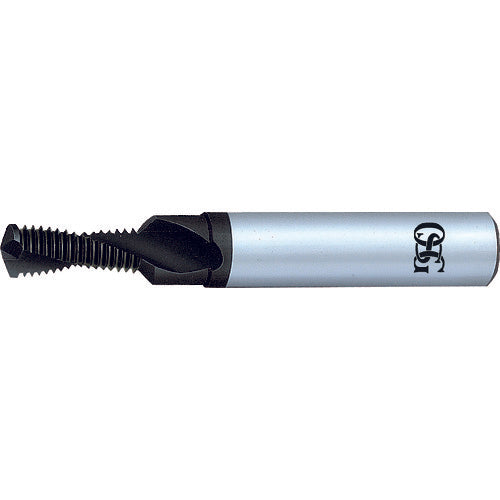

OSG Machining Center Threading Tool Super Planet Cutter M6 Pitch 1mm 8330400 DR-PNAC-M6 X 1 - 2D 1 piece

Catalog number: DR-PNAC-M6 X 1 - 2D Features: ● A composite tool that can perform pilot hole processing + chamfering + female thread processing with one tool, which eliminates the need for tool replacement, reduces non-machining time, and improves productivity. Applications: ● Workpiece: Cast iron, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, ductile cast iron, brass, brass castings. Specifications: ● Nominal size: M6 ● Pitch (mm): 1 ● Blade diameter (mm): 4.8 ● Blade length (mm): 12.1 ● Total length (mm): 62 ● Number of blades (pieces): 2 ● Shank diameter (mm): 8 ● Surface treatment: FX coating ● Total length L: 62 ● Blade length l: 14.7 ● Shank diameter d: 8 ● Machining thread: Metric thread Material / Finish: ● Carbide
