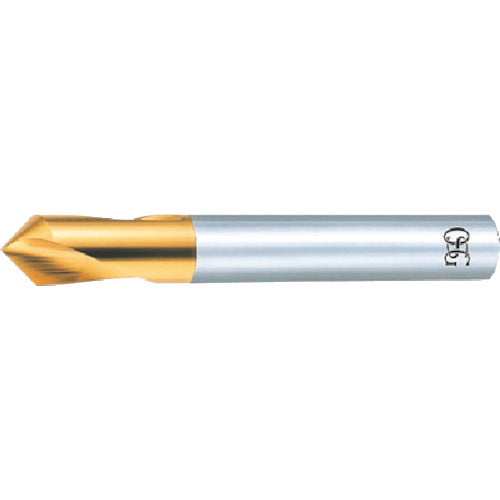

OSG Leading Drill (TiN Coating) 63616 TINNCLDS16X90 1 piece

Catalog number: TINNCLDS16X90 Features: ● TiN coating allows for faster speeds and longer life than NC-LDS. Specifications: ● Taper diameter (mm): 16 ● Shank diameter (mm): 16 ● Total length (mm): 118 ● Center hole angle (°): 90 ● Drill diameter (mm): 16 ● Drill length (mm): 41 ● Surface treatment: TIN coating ● Outer diameter (Dc): 16 ● Tip angle (α) (°): 90 ● Groove length (l): 41 ● Minimum pilot hole: 3 ● Workpiece: Low, medium, and high carbon steel, alloy steel, tempered steel (up to 35HRC), stainless steel, tool steel, cast iron, ductile cast iron, copper alloy, aluminum alloy casting, titanium alloy ● Twist angle (°): 20 ● Shank precision: h7 Material/Finish: ● High-speed steel (HSS)
