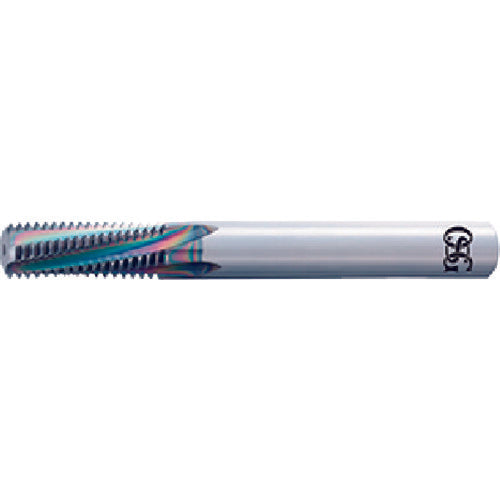

OSG One Revolution Thread Mill AT-1 8331013 AT-1 MG 11.7X30 P0.75-INT 1 piece

Catalog number: AT-1 MG 11.7X30 P0.75-INT Features: ● Left twist specification prevents tipping. ● Conventional two or more passes can now be processed in one pass, reducing processing time. Applications: ● Workpiece: low, medium, and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, cast steel, cast iron, ductile cast iron, copper, brass, brass casting, bronze, rolled aluminum, aluminum alloy casting, magnesium alloy casting, zinc alloy casting, thermosetting plastic, thermoplastic plastic Specifications: ● Nominal size: M14 ● Pitch (mm): 0.75 ● Blade diameter (mm): 11.7 ● Blade length (mm): 30 ● Total length (mm): 120 ● Shank diameter (mm): 12 ● Surface treatment: EgiAs coating ● Minimum processing diameter (mm): M14 Material/Finish: ● Carbide
