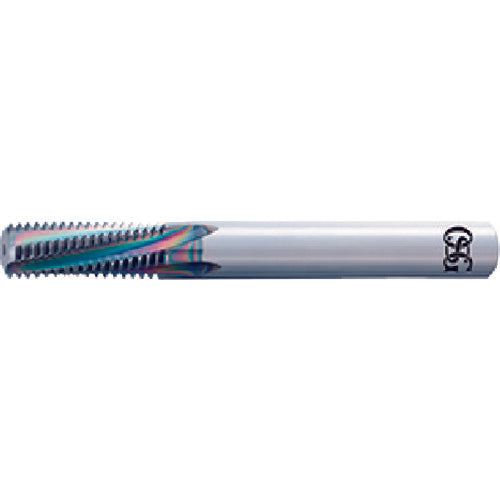

OSG One Revolution Thread Mill AT-1 8331023 AT-1 MG 19.7X51 P1.5-INT 1 piece

Catalog number: AT-1 MG 19.7X51 P1.5-INT Features: ● Left twist specification prevents tipping. ● Conventional two or more passes can be processed in one pass, reducing processing time. Applications: ● Workpiece: low, medium, high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, cast steel, cast iron, ductile cast iron, copper, brass, brass casting, bronze, aluminum rolled material, aluminum alloy casting, magnesium alloy casting, zinc alloy casting, thermosetting plastic, thermoplastic plastic Specifications: ● Nominal size: M24 ● Pitch (mm): 1.5 ● Blade diameter (mm): 19.7 ● Blade length (mm): 51 ● Total length (mm): 150 ● Shank diameter (mm): 20 ● Surface treatment: EgiAs coating ● Minimum processing diameter (mm): M24 Material / Finish: ● Carbide
