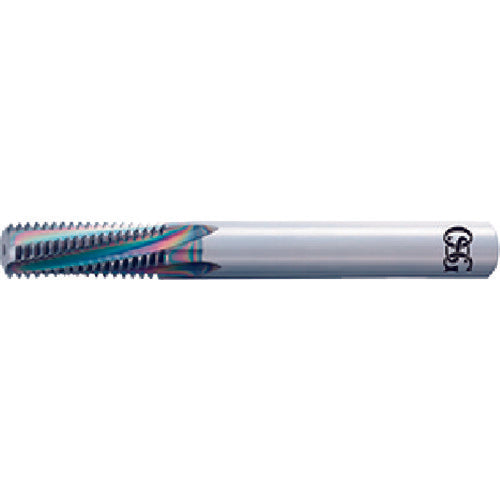

OSG One Revolution Thread Mill AT-1 8331024 AT-1 MG 19.7X52 P2-INT 1 piece

Catalog number: AT-1 MG 19.7X52 P2-INT Features: ● Left twist specification prevents tipping. ● Conventional two or more passes can now be processed in one pass, reducing processing time. Applications: ● Workpiece: low, medium, and high carbon steel, alloy steel, tempered steel (25-45HRC), stainless steel, cast steel, cast iron, ductile cast iron, copper, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, thermosetting plastics, thermoplastic plastics Specifications: ● Nominal size: M24 ● Pitch (mm): 2 ● Blade diameter (mm): 19.7 ● Blade length (mm): 52 ● Total length (mm): 150 ● Shank diameter (mm): 20 ● Surface treatment: EgiAs coating ● Minimum processing diameter (mm): M24 Material/Finish: ● Carbide
