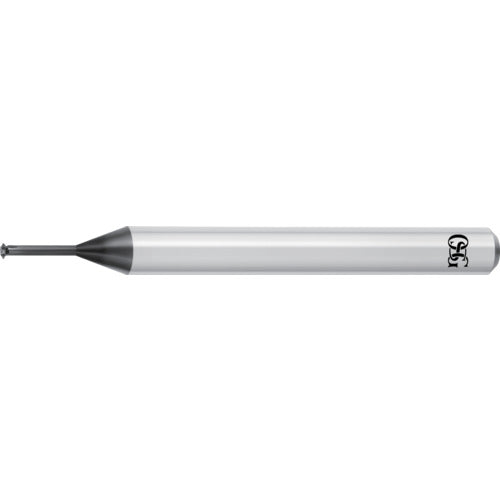

OSG Small Diameter Planet Cutter 3900497 WH-VM-PNC-1.05X0.3XP0.3-INT 1 piece

Catalog number: WH-VM-PNC-1.05X0.3XP0.3-INT Features: ● Planet cutter for milling small diameter female threads. Applications: ● Workpiece materials: low, medium and high carbon steel, alloy steel, tempered steel, stainless steel, cast steel, cast iron, ductile cast iron, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings, titanium alloys, thermosetting plastics, thermoplastic plastics. Specifications: ●Nominal size: M1.4 ●Pitch (mm): 0.3 ●Blade diameter (mm): 1.05 ●Blade length (mm): 0.3 ●Total length (mm): 40 ●Number of blades (pieces): 3 ●Shank diameter (mm): 3 ●Neck length (mm): 3.8 ●Surface treatment: SS coating (blade diameter ≦ φ1.3), WXS coating (φ1.5 ≦ blade diameter) ●Total length L: 40 ●Blade length l: 0.3 ●Shank diameter d: 3 ●Machined thread: Metric thread Material/Finish: ●Carbide
