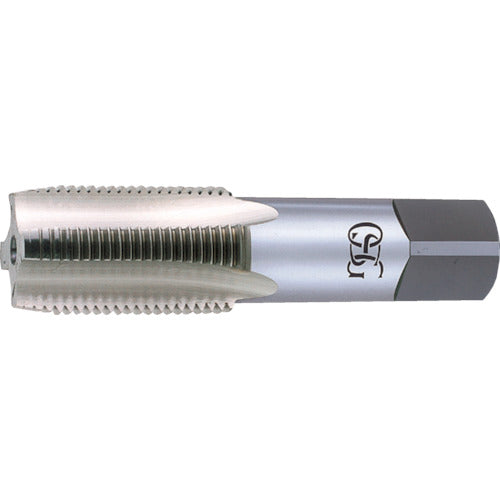

OSG Parallel Pipe Tap General Purpose PS1/2 23534 SPT-H-PS1/2 1 pc

Catalog number: SPT-H-PS1/2 Features: ● General pipe parallel thread tap, used in a wide range of applications. Applications: ● Workpiece: Medium carbon steel, cast iron, cast steel, ductile cast iron, brass, brass castings, bronze, rolled aluminum, aluminum alloy castings, magnesium alloy castings, zinc alloy castings. Specifications: ● Precision: JIS Class 2 ● Nominal dimensions: 1/2 ● Number of threads: 14 ● Thread length (mm): 35 ● Total length (mm): 80 ● Shank diameter (mm): 18 ● Shank square section (mm): 14 ● Pilot hole diameter (mm): 18.5 ● Machining thread: Sealing taper, internal thread ● Number of engagement threads: 4 ● Surface treatment: Non-coated ● Tap grade: JIS grade Material/Finish: ● High speed steel (HSS)
