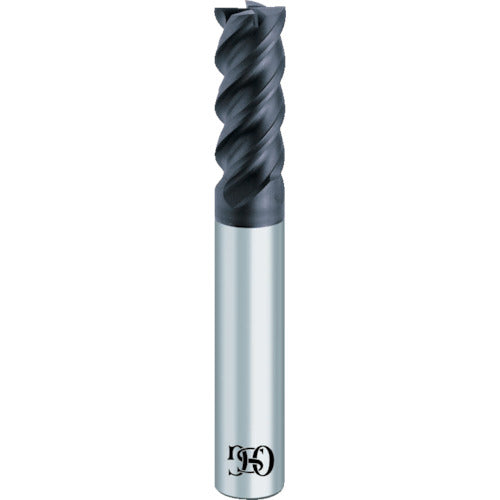

OSG Carbide End Mill 8542540 FX-MG-EHS-14X4F 1 piece

Catalog number: FX-MG-EHS-14X4F Features: ●The 4-blade type has excellent chip removal even when cutting grooves, and its excellent sharpness prevents burrs. ●A 3-blade type that is resistant to vibration is also available. Applications: ●Cutting materials: carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 45HRC), stainless steel (up to 35HRC), cast iron, ductile cast iron (up to 350HB), titanium alloy, heat-resistant alloy. Specifications: ●Blade diameter (mm): 14 ●Blade length (mm): 26 ●Shank diameter (mm): 16 ●Number of blades (pieces): 4 ●Total length (mm): 90 ●Surface treatment: FX coating ●Number of blades: 4 ●FX coating ●Twist angle 50° Material/Finish: ●Carbide
