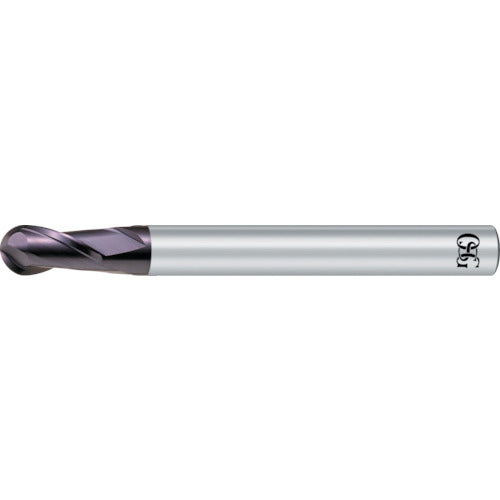

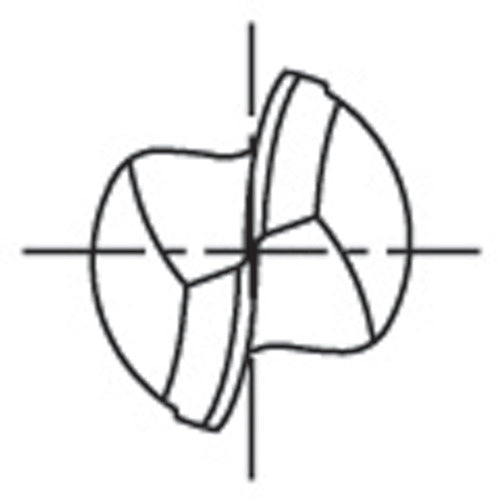

Catalog number: WX-EBD-R2X4-4 Features: ● A general-purpose ball end mill that can be used for a wide range of work materials and processing. ● Highly tough carbide base material realizes stable continuous processing for long periods of time. ● The ultimate cost performance has been pursued. Applications: ● Work materials: carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 55HRC), stainless steel, cast iron, ductile cast iron (up to 350HB). Specifications: ● Ball radius (mm): 2 ● Blade length (mm): 8 ● Total length (mm): 60 ● Shank diameter (mm): 4 ● Surface treatment: WX coating ● Twist angle 30° Material/Finish: ● Carbide
