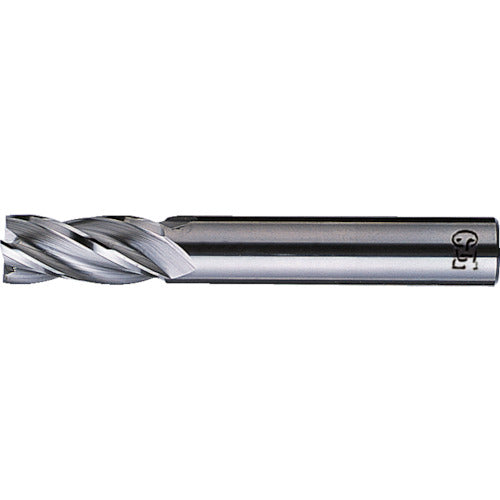

OSG Carbide Square End Mill 4-Flute Short Blade Diameter 3.5mm Blade Length 10mm 84407 MG-EMS-3.5 1 piece

Catalog number: MG-EMS-3.5 Features: ● Carbide square 4-blade short end mill. ● A 4-blade end mill that uses high-toughness carbide alloy and achieves long life at low and medium speeds. Applications: ● Workpiece: Low carbon steel, pre-hardened steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 45HRC), cast iron, ductile cast iron (up to 350HB), copper alloy, aluminum alloy. ● Workpiece: Carbon steel, alloy steel, tool steel (up to HRC40), pre-hardened steel, hardened steel (up to HRC45), cast iron, ductile cast iron (up to HB350), copper alloy, aluminum alloy. Specifications: ● Blade diameter (mm): 3.5 ● Blade length (mm): 10 ● Shank diameter (mm): 6 ● Total length (mm): 45 ● Surface treatment: Non-coated ● Non-coating ● Twist angle 30° Material/Finish: ● Carbide
