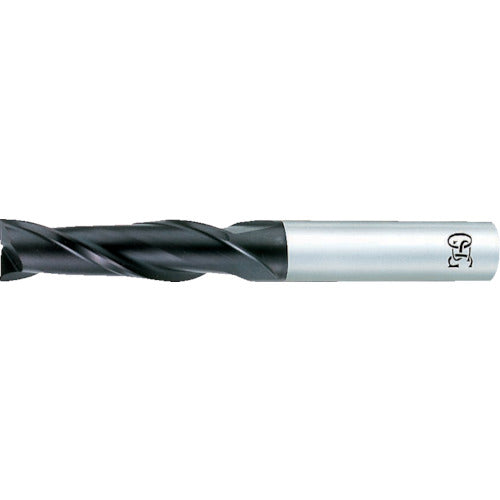

OSG Carbide Square End Mill FX Coated 2-Flute Long Blade Diameter 17mm Shank Diameter 16mm 8522170 FX-MG-EDL-17 1 piece

Catalog number: FX-MG-EDL-17 Features: ● General-purpose 2-blade end mill long blade type with FX coating that has excellent heat resistance. Applications: ● Workpiece: Carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel (up to 45HRC), hardened steel (up to 45HRC), cast iron, ductile cast iron (up to 350HB). Specifications: ● Blade diameter (mm): 17 ● Blade length (mm): 48 ● Shank diameter (mm): 16 ● Number of blades (pieces): 2 ● Total length (mm): 115 ● Surface treatment: FX coating ● Number of blades: 2 ● Twist angle 30° Material/Finish: ● Carbide
