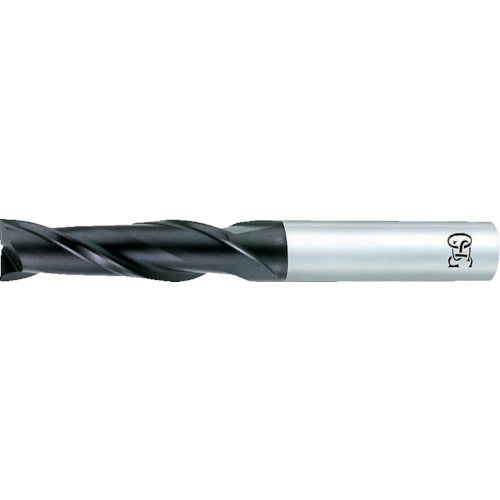

OSG Carbide Square End Mill FX Coated 2-Flute Long Blade Diameter 30mm Shank Diameter 32mm 8522300 FX-MG-EDL-30 1 piece

Catalog number: FX-MG-EDL-30 Features: ● General-purpose 2-blade end mill long blade type with FX coating that has excellent heat resistance. Applications: ● Workpiece: Carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel (up to 45HRC), hardened steel (up to 45HRC), cast iron, ductile cast iron (up to 350HB). Specifications: ● Blade diameter (mm): 30 ● Blade length (mm): 67 ● Shank diameter (mm): 32 ● Number of blades (pieces): 2 ● Total length (mm): 145 ● Surface treatment: FX coating ● Number of blades: 2 ● Twist angle 30° Material/Finish: ● Carbide
