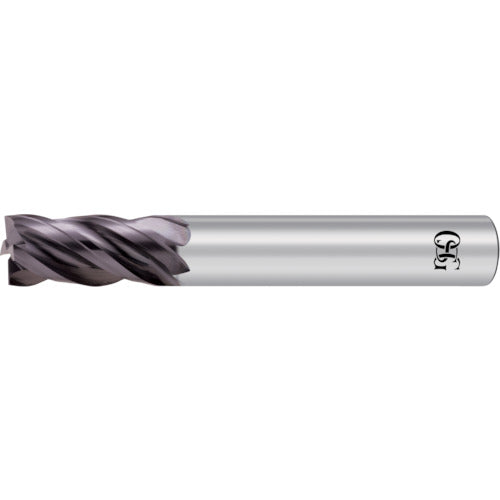

OSG Carbide Square End Mill NEO 4-blade short (unequal lead heavy duty cutting type) NEO-PHS Φ25 8529450 NEO-PHS-25 1 piece

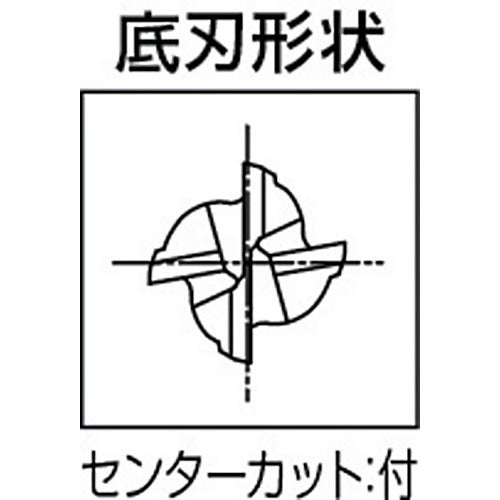

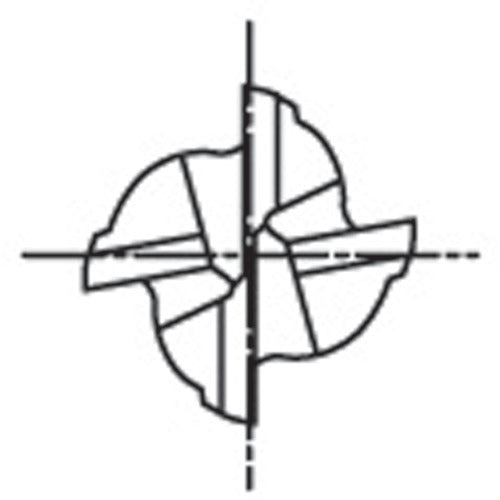

Catalog number: NEO-PHS-25 Features: ●The evolved "unequal lead" effect suppresses vibration and achieves amazingly high-efficiency machining. ●Effective in machining environments where there is a lot of vibration and cutting conditions cannot be increased. Applications: ●Cutting materials: carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 45HRC), stainless steel (up to 35HRC), cast iron, ductile cast iron (up to 350HB), titanium alloy, heat-resistant alloy. Specifications: ●Blade diameter (mm): 25 ●Blade length (mm): 50 ●Shank diameter (mm): 25 ●Total length (mm): 120 ●Surface treatment: FX coating ●Twist angle 36°・39° ●Center cut: Included Material/Finish: ●Carbide
