オーエスジー（株）

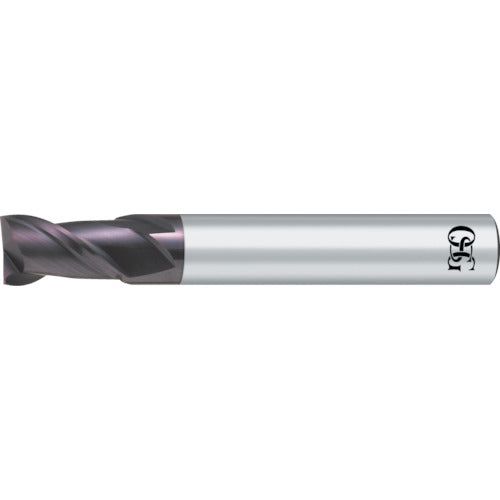

OSG Carbide Square End Mill WX Coated Guts Mill 2-blade stub Blade diameter 12mm Blade length 18mm 3019120 WX-G-EDSS-12 1 piece

OSG Carbide Square End Mill WX Coated Guts Mill 2-blade stub Blade diameter 12mm Blade length 18mm 3019120 WX-G-EDSS-12 1 piece

JAN： 　
Carbide Square End Mill Cutting Tools OSG Carbide End Mill A Turning and milling tools
¥9,346
¥9,346
Sale Sold out
Shipping calculated at checkout.

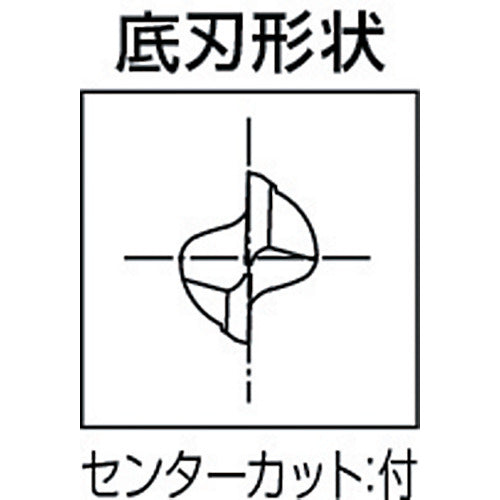

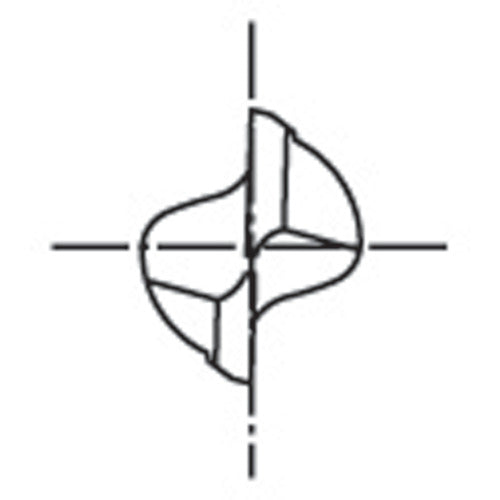

Catalog number: WX-G-EDSS-12 Features: ● Powerful 2-blade end mill with reinforced bottom blade corner. ● Heavy cutting is possible due to the short blade length with high rigidity. Achieves lead time reduction in mass production processing. Applications: ● Workpiece: Carbon steel, alloy steel, tool steel (up to 40HRC), pre-hardened steel, hardened steel (up to 45HRC), cast iron, ductile cast iron (up to 350HB). Specifications: ● Blade diameter (mm): 12 ● Blade length (mm): 18 ● Shank diameter (mm): 12 ● Total length (mm): 75 ● Surface treatment: WX coating ● Twist angle 35° ● Center cut: Included Material/Finish: ● Carbide
