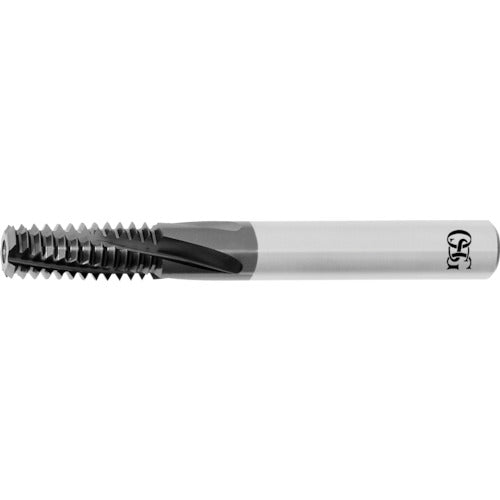

OSG Carbide Tap 3900023 WX-PNC-7.5X22.5XP1.5-INT 1 piece

Catalog number: WX-PNC-7.5X22.5XP1.5-INT Features: ●One tool can process threads with different nominal dimensions if they have the same pitch, and can process both right-handed and left-handed threads. ●Also used in the aircraft industry. Applications: ●Cutting materials: aluminum rolled material, aluminum alloy castings, titanium alloys, Ni-based alloys, thermosetting plastics, thermoplastic plastics, low carbon steel, cast steel, cast iron, ductile cast iron, copper, brass, brass castings, bronze, magnesium alloy castings, zinc alloy castings. Specifications: ●Nominal size: M10 ●Pitch (mm): 1.5 ●Blade diameter (mm): 7.5 ●Blade length (mm): 22.5 ●Total length (mm): 70 ●Number of blades (pieces): 3 ●Shank diameter (mm): 8 ●Neck length (mm): 26 ●Surface treatment: WX coating ●Total length L: 70 ●Blade length l: 22.5 ●Shank diameter d: 8 Material/Finish: ●Carbide
