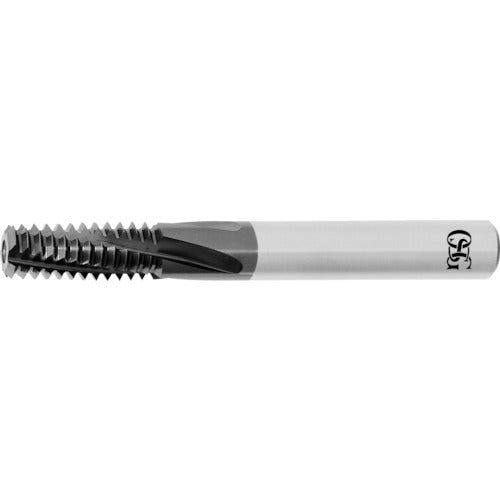

OSG Carbide Tap 3900259 WX-PNC-5.9X10.3XNPT27 1 piece

Catalog number: WX-PNC-5.9X10.3XNPT27 Features: ●One tool can process threads with different nominal dimensions if they have the same pitch, and can process both right-handed and left-handed threads. ●Also used in the aircraft industry. Applications: ●Cutting materials: aluminum rolled materials, aluminum alloy castings, titanium alloys, Ni-based alloys, thermosetting plastics, thermoplastic plastics, low carbon steel, cast steel, cast iron, ductile cast iron, copper, brass, brass castings, bronze, magnesium alloy castings, zinc alloy castings. Specifications: ●Nominal dimensions: 1/16, 1/8 ●Number of teeth: 27 ●Blade diameter (mm): 5.9 ●Blade length (mm): 10.3 ●Total length (mm): 60 ●Number of blades (pieces): 3 ●Shank diameter (mm): 6 ●Surface treatment: WX coating ●Total length L: 60 ●Blade length l: 10.3 ●Shank diameter d: 6 Material/Finish: ●Carbide
